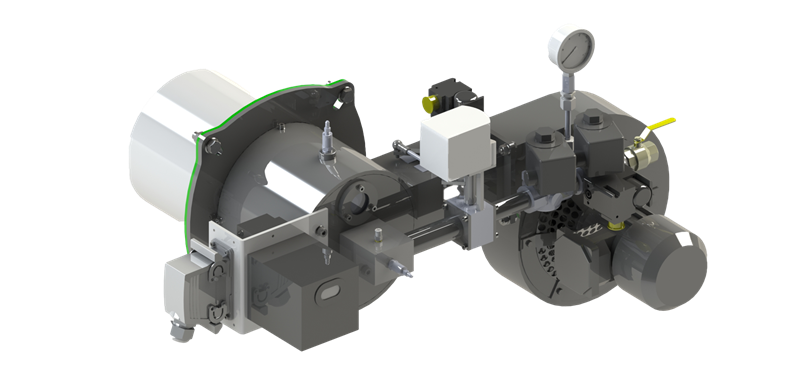

Gas Burners – High Turndown Ratio

GRM SERIES
GAZORAM burners are nozzle-mixed burners and used in industrial direct-heating furnaces and drying applications. These furnaces usually have a balanced pressure in the combustion chamber and require burners with wide operating ranges. GAZORAM burners have a simple operating logic and easily adapt to many applications with different installation options. Gazoram burners operate at gas pressure of 21 to 50 mbar.

Available Models

• GRM 15 | 3,84 ÷ 174,42 kW
• GRM 30 | 9,88 ÷ 348,84 kW
• GRM 60 | 17,44 ÷ 639.53 kW
• GRM 80 | 17,44 ÷ 872,09 kW
• GRM 100 | 33,19 ÷ 1162,72 kW

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.

Industrial Burners [Multiple Fuels]

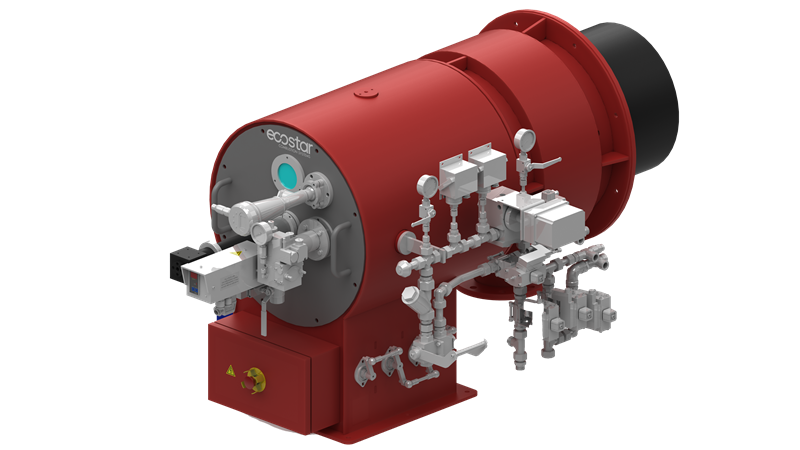

DIB SERIES
ECOSTAR DIB series industrial burners with duoblock body structure are used in steam boilers, hot oil boilers, start-up applications and hot air generators.
Natural gas, LPG, Heavy Oil, Light Oil, Biogas, and special fuels can be used.

Available Models & Firing Output

• DIB 301 | Max MW: 3,2 Max kcal/h: 2.752.000
• DIB 302 | Max MW: 4 Max kcal/h: 3.440.000
• DIB 351 | Max MW: 4,8 Max kcal/h: 4.128.000
• DIB 352 | Max MW: 5,9 Max kcal/h: 5.074.000
• DIB 353 | Max MW: 7 Max kcal/h: 6.020.000
• DIB 401 | Max MW: 7,8 Max kcal/h: 6.708.000
• DIB 402 | Max MW: 8,5 Max kcal/h: 7.310.000
• DIB 403 | Max MW: 11 Max kcal/h: 9.460.000
• DIB 452 | Max MW: 12,4 Max kcal/h: 10.664.000
• DIB 500.2 | Max MW: 17,1 Max kcal/h: 14.706.000
• DIB 600.2 | Max MW: 22,5 Max kcal/h: 19.350.000
• DIB 600.3 | Max MW: 24 Max kcal/h: 20.640.000



More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.

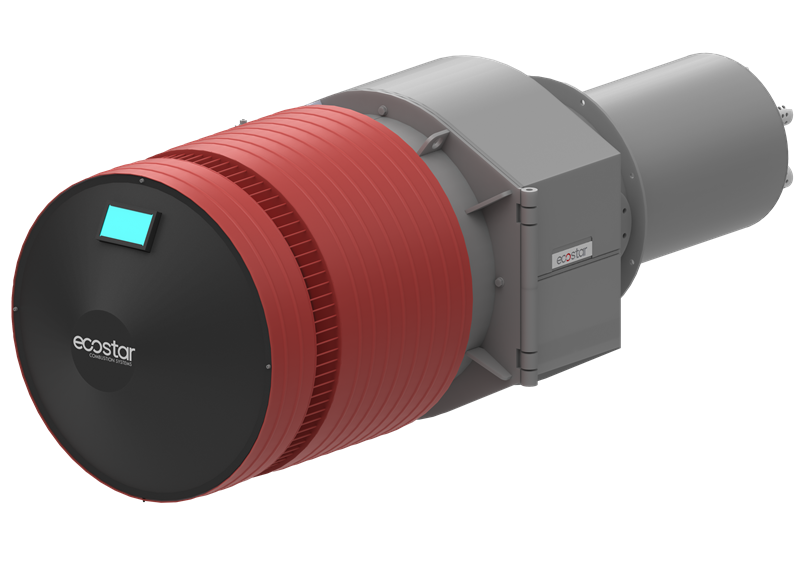

CIB SERIES

ECOSTAR CIB series industrial burners with monoblock body structure are used in hot water boilers, steam boilers and hot oil boilers.
Natural Gas, LPG, Light Oil and Biogas can be used in CIB series industrial burners.
They have low flue gas emission values with their special body and combustion nozzle designs.

Available Models & Firing Output

• CIB 6 | Max MW: 3,5 Max kcal/h: 3.010.000
• CIB 7 | Max MW: 7,5 Max kcal/h: 6.450.000
• CIB 8 | Max MW: 10,5 Max kcal/h: 9.030.000

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.

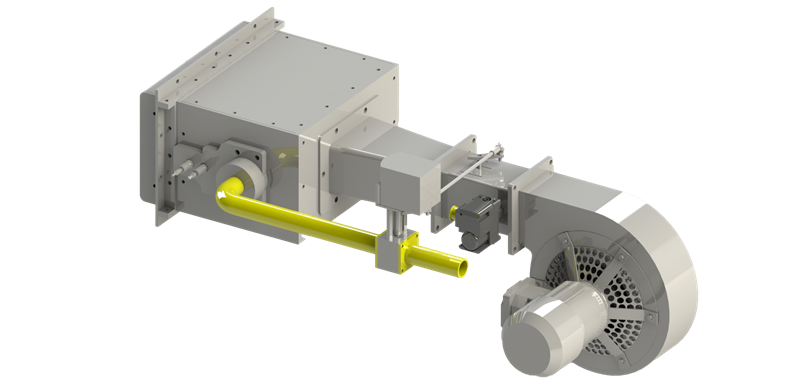

Duct Burners

COSTAR duct burners are used in hot air generation without any need for special combustion chamber. During the process, the burner bodies supply fuel to the centre of the air wings and control the air/fuel mixtures. In this way, it optimizes efficiency.
Burner is mounted directly in air ducts. The process air to be heated is mixed with combustion gases to reach the desired temperature.
With reliable modular design, optimum mixing of the flame with the process air is ensured. The greatest feature of those burners, though has the broadest operation range, has to supply simple controlled and high efficiency.

Available Models & Firing Output

• T/HI 300 | Max kW: 348,8 Max kcal/h: 300.000

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.

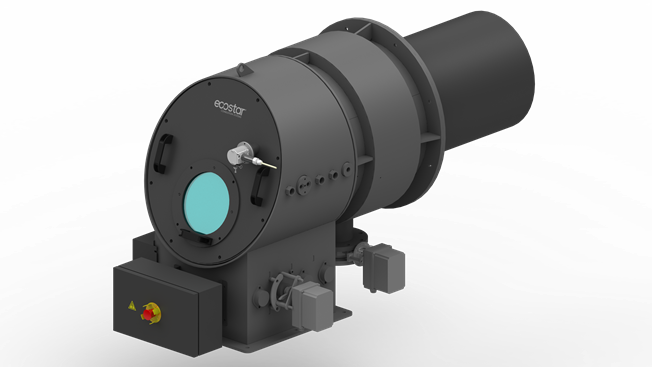

ECO Series – Industrial Burners

ECOSTAR ECO series industrial burners with duoblock body structure are used in hot water boilers, steam boilers, hot oil boilers, dryers, fluidized bed and grate boilers and hot air generators in start-up applications.
It can be used with Natural Gas, LPG, Heavy Oil, Light Oil, Biogas and special fuels in ECO series industrial burners. Thanks to its duoblock structure, the burner body, air control cage and fan can be located in different spaces, offering effective use of this area and flexible process design.

Available Models & Firing Output

• ECO 250.1 | Max MW: 1,9 Max kcal/h: 1.600.000
• ECO 250.2 | Max MW: 2,6 Max kcal/h: 2.250.000
• ECO 300.1 | Max MW: 3,4 Max kcal/h: 2.900.000
• ECO 350.2 | Max MW: 6,2 Max kcal/h: 5.300.000
• ECO 500.1 | Max MW: 16,2 Max kcal/h: 13.900.000
• ECO 600.3 | Max MW: 25,0 Max kcal/h: 21.500.000
• ECO 700.2 | Max MW: 27,3 Max kcal/h: 23.500.000
• ECO 800.1 | Max MW: 32,1 Max kcal/h: 27.600.000
• ECO 900.1 | Max MW: 36,7 Max kcal/h: 31.600.000

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.

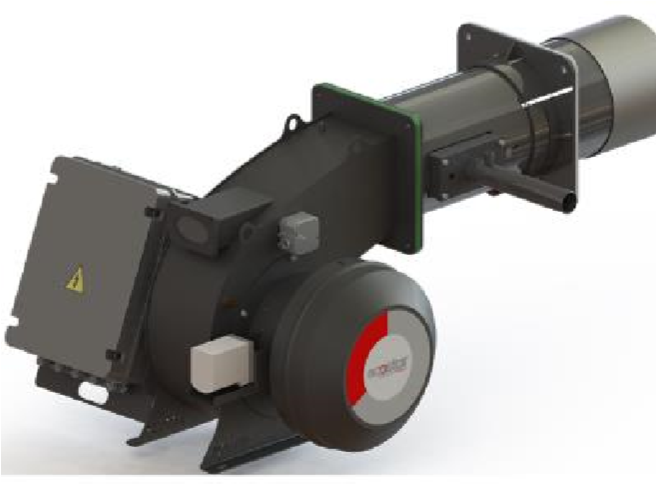

Monoblock Burners

HP Series Modulating Gas Burners

The HP series burners covers a firing range from 80 to 4500 kW Mechanical with pneumatic or electronic modulating control option. Available fuels are Natural Gas and LPG with operating possibility of 300 mbar and 21 mbar gas pressure.

Available Models & Firing Output

• ECO 200 HP GC 3 | Min kW: 80 Max kW: 200
• ECO 350 HP GC 3 | Min kW: 90 Max kW: 350
• ECO 1100 HP GC 3 | Min kW: 250 Max kW: 1100
• ECO 2000 HP GC 3 | Min kW: 550 Max kW: 2000
• ECO 3000 HP GC 3 | Min kW: 600 Max kW: 3000
• ECO 4000 HP GC 3 | Min kW: 750 Max kW: 4500

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.

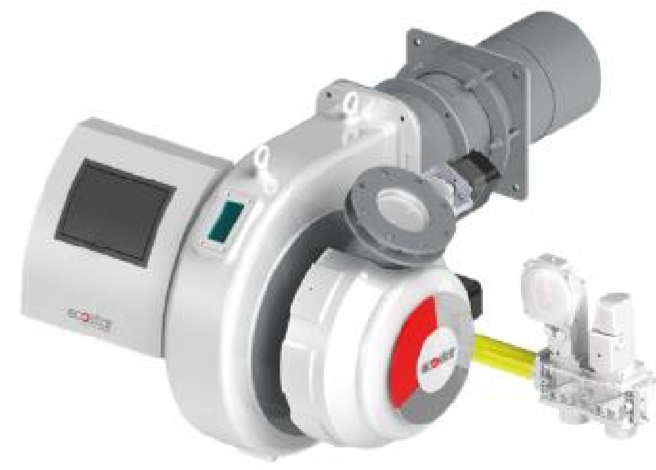

New Generation Low NOx (FGR) ECO NG LNX Series

The new generation Low NOx gas burners are in accordance to European Standard EN 676:2020, with class 3 NOx and CO emission, operation in any type of combustion chamber according to the standard EN 303, an ultra-Low NOx gas burner with FGR (Flue gas recirculation) feature. The burner is equipped with an high-performance reverse wing; high fan efficiency with centrifugal fan; low electrical consumption; low noise level.

Available Models & Firing Output

• ECO NG LNX 90 G (FGR) | Min kW: 180 Max kW: 900
• ECO NG LNX 120 G (FGR) | Min kW: 250 Max kW: 1150
• ECO NG LNX 200 G (FGR) | Min kW: 470 Max kW: 1920
• ECO NG LNX 400 G (FGR) | Min kW: 580 Max kW: 3920
• ECO NG LNX 670 G (FGR) | Min kW: 1150 Max kW: 6640
• ECO NG LNX 1150 G (FGR) | Min kW: 3030 Max kW: 11500

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.

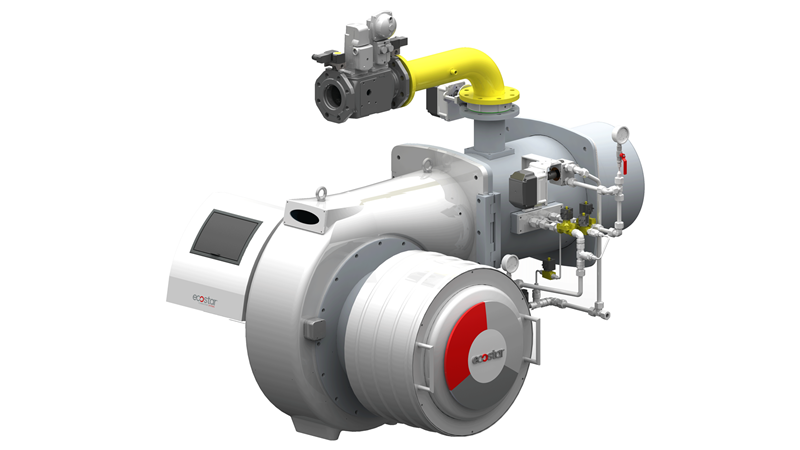

NG Series Light Oil Burners

The NG Series light oil burners are hhigh combustion efficiency by providing optimum fuel- air mixture with fuel-air servo motors that can be adjusted with high precision, combustion cap adjustable to desired capacity. It also provides optional CO/O2 (trim) system integration for combustion optimization.

Available Models & Firing Output

• ECO 8 O (L) C 3 NG | Min kW: 840 Max kW: 6000
• ECO 8.5 O (L) C 3a NG | Min kW: 1120 Max kW: 8000
• ECO 9 O L C 3c NG | Min kW: 2100 Max kW: 12000
• ECO 55 O (L) C 3 NG | Min kW: 449 Max kW: 2020

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.

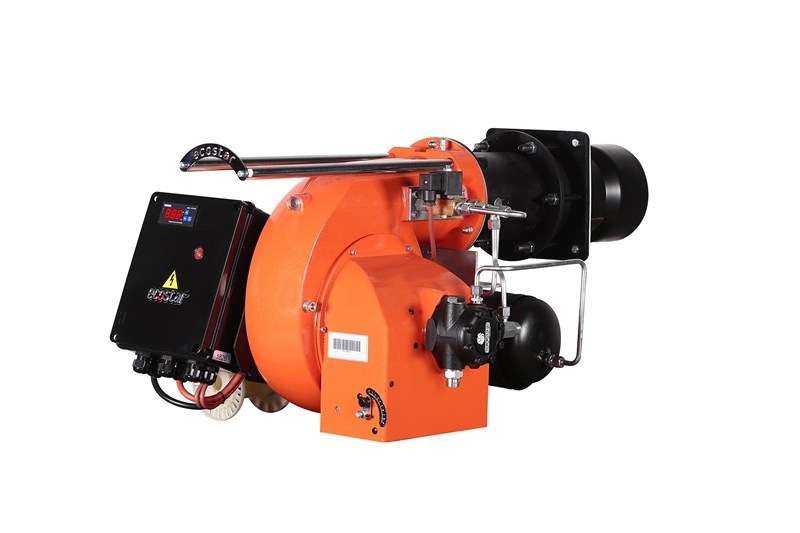

ECO SERIES Modulating Heavy Oil Burners

The Ecostar ECO Series Modulating Heavy Oil burners are high pressure mechanical atomization at nozzle burners which are specially designed, compact pre-heater with limiting thermostat. The burners provide a uniform fuel mixture with a unique combustion head with high combustion efficiency. The burners contain sliding flange mechanism for easy access to all parts without dismounting the burner from the boiler.

Available Models & Firing Output

• ECO 45 O (S) C 3b | Min kW: 247 Max kW: 1180
• ECO 55 O (S) C 3 | Min kW: 449 Max kW: 2020
• ECO 60 O (S) C 3 | Min kW: 696 Max kW: 3000
• ECO 65 O (S) C 3 | Min kW: 853 Max kW: 3500
• ECO 70 O (S) C 3 | Min kW: 1066 Max kW: 4070
• ECO 75 O (S) C 3 | Min kW: 1167 Max kW: 5610

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications

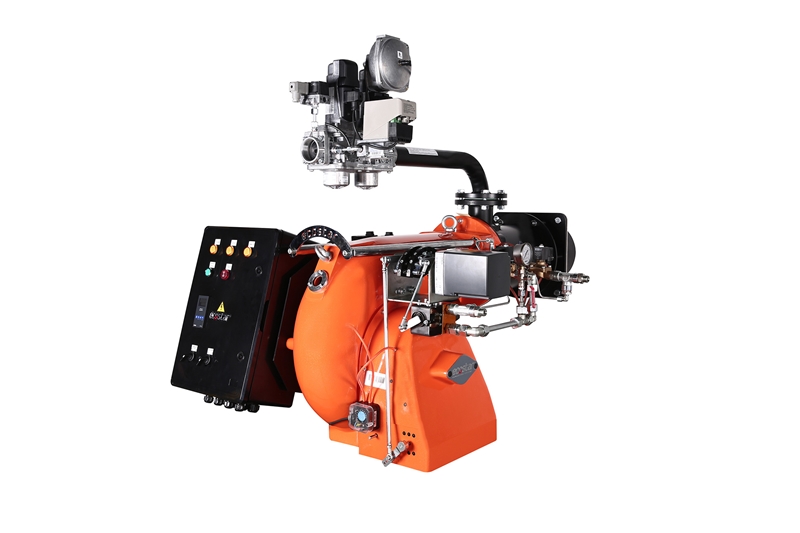

Modulating Gas + Light Oil Dual Fuel Burners ECO Series

The ECO series dual fuel burners offer modulating operation on natural gas and light oil. Mechanical, pneumatic, and electronic modulating control options are available. The burner offers a wide thermal capacity adjustment range according to heat requirement. The burners provide a uniform fuel mixture with a unique combustion head with high combustion efficiency. The burners contain sliding flange mechanism and easy access to all parts without dismounting the burner from the boiler.

Available Models & Firing Output

• ECO 45 K L C 3b | Gas Min kW: 200 Max kW: 1200 Light-Oil Capacity: Min kW: 247 Max kW: 1180
• ECO 50 K L C 3 | Gas Min kW: 250 Max kW: 1500 Light-Oil Capacity: Min kW: 393 Max kW: 1571
• ECO 60 K L C 3 | Gas Min kW: 430 Max kW: 3000 Light-Oil Capacity: Min kW: 696 Max kW: 3000
• ECO 75 K L C 3 | Gas Min kW: 798 Max kW: 5581 Light-Oil Capacity: Min kW: 1167 Max kW: 5610

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.

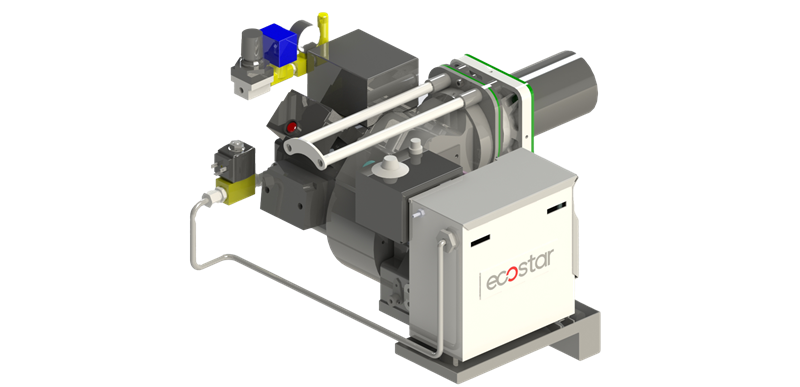

Waste Oil Burners

The Ecostar ECO WO Series can operate on light oil and waste oil. The two stage operation burners provide optimum fuel / air mixture with special combustion nozzle. The burners contain sliding flange mechanism and easy access to all parts without dismounting the burner from the boiler.

Available Models & Firing Output

• ECO WO-20 | Min kW: 26,00 Max kW: 38,00
• ECO WO-55 | Min kW: 37,00 Max kW: 54,00
• ECO WO-75 | Min kW: 56,00 Max kW: 81,00
• ECO WO-100 | Min kW: 81,00 Max kW: 100,00
• ECO WO-150 | Min kW: 93,00 Max kW: 147,00
• ECO WO-200 | Min kW: 131,00 Max kW: 187,00

More models available…

Refer individual datasheet(s) provided with the quoted model for detailed technical specifications.
